Insulation Resistance Tester, ETCR9100 H/L Voltage Clamp Current Meter Leakage Current Digital Clamp Meter,leakage Current Measurement And Resistance Measurement

Power Supply：DC 6V(1.5V x4) Not includedClamp：Φ33mmLCD：47mm×28.5mm(with backlight)Range：AC 0.00mA~600AResolution：0.01mAAccuracy：±1%rdg±3dgt(23℃±5℃,below 80%rh)Data storage：99 setAuto Power-off：15 minutes off automaticallyWorking environment：-10℃~40℃;below 80%rhStore environment：-10℃~60℃;below 70%rhStructure：Drip-proof type Ⅱmeasurement method：Clamp CT,Non-contact measurement, Points methodFrequency：50Hz,60Hz Automatic IdentificationShift：Automatic shiftingPeak Hold：Automatically hold the test value at a high point. Press and hold the PEAK button in the test mode until the PEAK lamp lights up. The peak hold function is enabled. Data Hold：Press HOLD key to hold data in test mode, “HOLD” symbol displayData review："MR" symbol indicates that you can flip through the stored dataOverflow display：Overrange overflow function: "OLA" symbol display Line voltage：below 60KV circuit test (with 5 sections insulation rod operation)Measure time：0.5 seconds/timeVoltage alarm：When battery voltage decreases to about 4.8V, battery voltage low icon will displayInsulation rod size：Φ32mm,1m/pcs(5pcs)Insulation：AC100kV/rms(Section 5 between insulation rod and high voltage clamp core)Weight：Meter:about 335g ,about 7Kg(with 5pcs Rod)Dimension：245mm×68mm×40mm

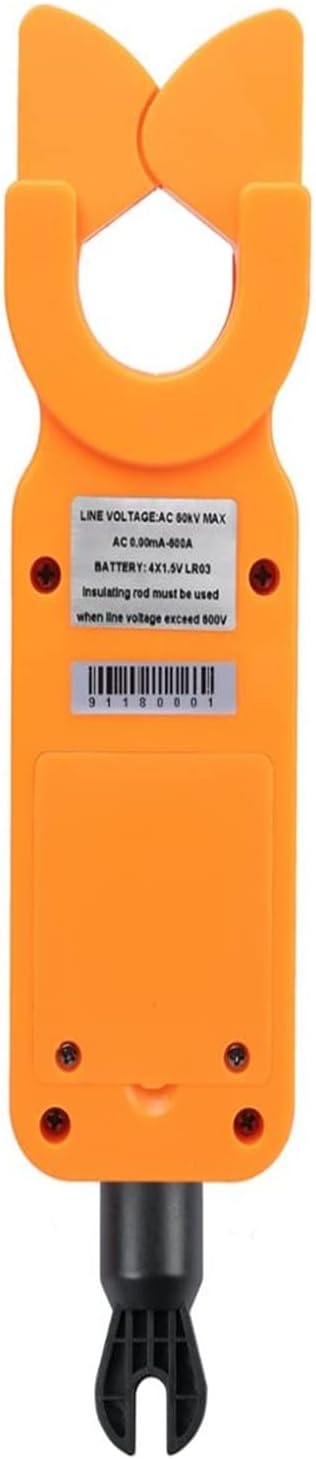

• ETCR9100 H/L Voltage Clamp Meter specially designed and manufactured for high precision high voltage current measurement; use the latest CT technology and integrated digital technology; composed of special high voltage detector, wireless receiver and high voltage insulation rods. Wireless transmission can receive the measured data by penetrating storey building barriers or 30 meters. If not use insulated rods, it can also used as high-precision low-voltage clamp meter and leakage current meter, can accurately measure the 0.00mA ~600A current or leakage current.
