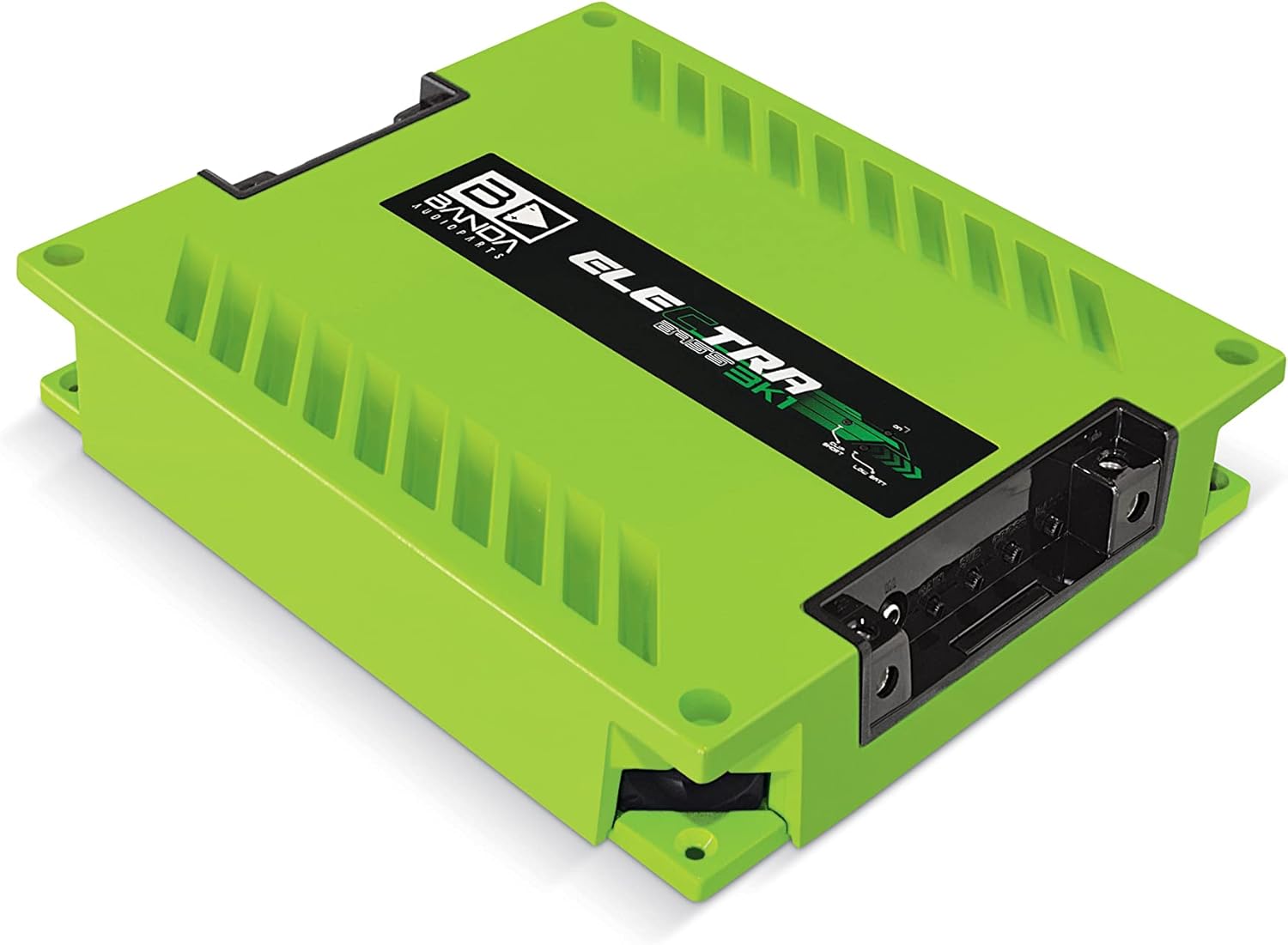

Electra 1-Ch. Vehicle Audio Bass Amplifier - 3000WRMS D Class High-Powered Mono Bass Amp w/Subsonic & Low Pass Filters Stable @ 1ohm, LED Indicators, Sound Specialization, Green - Banda 3K1OHMGREEN
4.5 (31 items)
Limited Time SaleUS$243.37 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221571905 | Release Date | 2026/05/03 | List Price | US$162.24 | Model Number | 221571905 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
BANDA ELECTRA One Channel 3000 Watts Max @ 1 Ohm Car Audio Mono Amplifier w/Bass Boost Subsonic Filter and Low Pass Filter - 3K1OHMGREEN Amplifier Class: D Total Power 14.4 @ 1 Ohm: 3600 WRMS Total Power 14.4 @ 2 Ohms: 2400 WRMS Total Power 12.6 @ 1 Ohm: 3000 WRMS Total Power 12.6 @ 2 Ohms: 1800 WRMS Efficiency @ 2 Ohms: 82% Efficiency @ 1 Ohm: 75% Input Voltage: 9 to 15V Input Impedance: 100K Ohms THD+Noise: less than 1% Input Sensitivity: 110mV to 8V* SNR: 82dB Recommended Fuse: 150 A Current at Rest: 2 A Average Current Draw (Sinusoidal): 320 A Average Current Draw (Music): 160 A Power Wire Gauge (min.Recommended): 21mm / 4 AWG Speaker Wire Gauge (min.Recommended): 2 x 4mm / 2 x 11 AWG Weight (Lb): 10.8 Height (in): 2.4 Width (in): 10.6 Depth (in): 12.3.
- POWER SUPPLY: Class D vehicle audio amplifier, Total Power 14.4 @ 1 Ohm; 3600 WRMS, Total Power 14.4 @ 2 Ohms: 2400 WRMS, Total Power 12.6 @ 1 Ohm: 3000 WRMS, Total Power 12.6 @ 2 Ohms: 1800 WRMS, Efficiency @ 2 Ohms: 82%, Efficiency @ 1 Ohm: 75%
- MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), Constant - shorting and thermal protection indicator, Yellow LED: below specified voltage indicator (flashing)
- POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 100K Ohms, THD + Noise: less than <1%, Input Sensitivity: 110mV to 8V, Signal to Noise Ratio: 82dB
- SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
- OTHER TECHNICAL SPECS: Recommended Fuse: 150A, Current at Rest: 2A, Ave. Current Draw (Sinusoidal): 320 A, Ave. Current Draw (Music): 160A, Power Wire Gauge: 21mm/4 AWG, Speaker Wire Gauge: 2 x 4mm/2 x 11 AWG, Size: 12.3'' x 10.6'' x 2.4'' -inches
| Model | 3K1OHMGREEN |
|---|---|
| Brand Name | Banda Audioparts |
| Item Weight | 1 Pounds |
| Part Number | 3K1OHMGREEN |
| Manufacturer | BANDA |
| Mounting Type | Surface Mount |
| Item Dimensions | 12.3 x 10.6 x 2.4 inches |
| Number of Channels | 1 |
