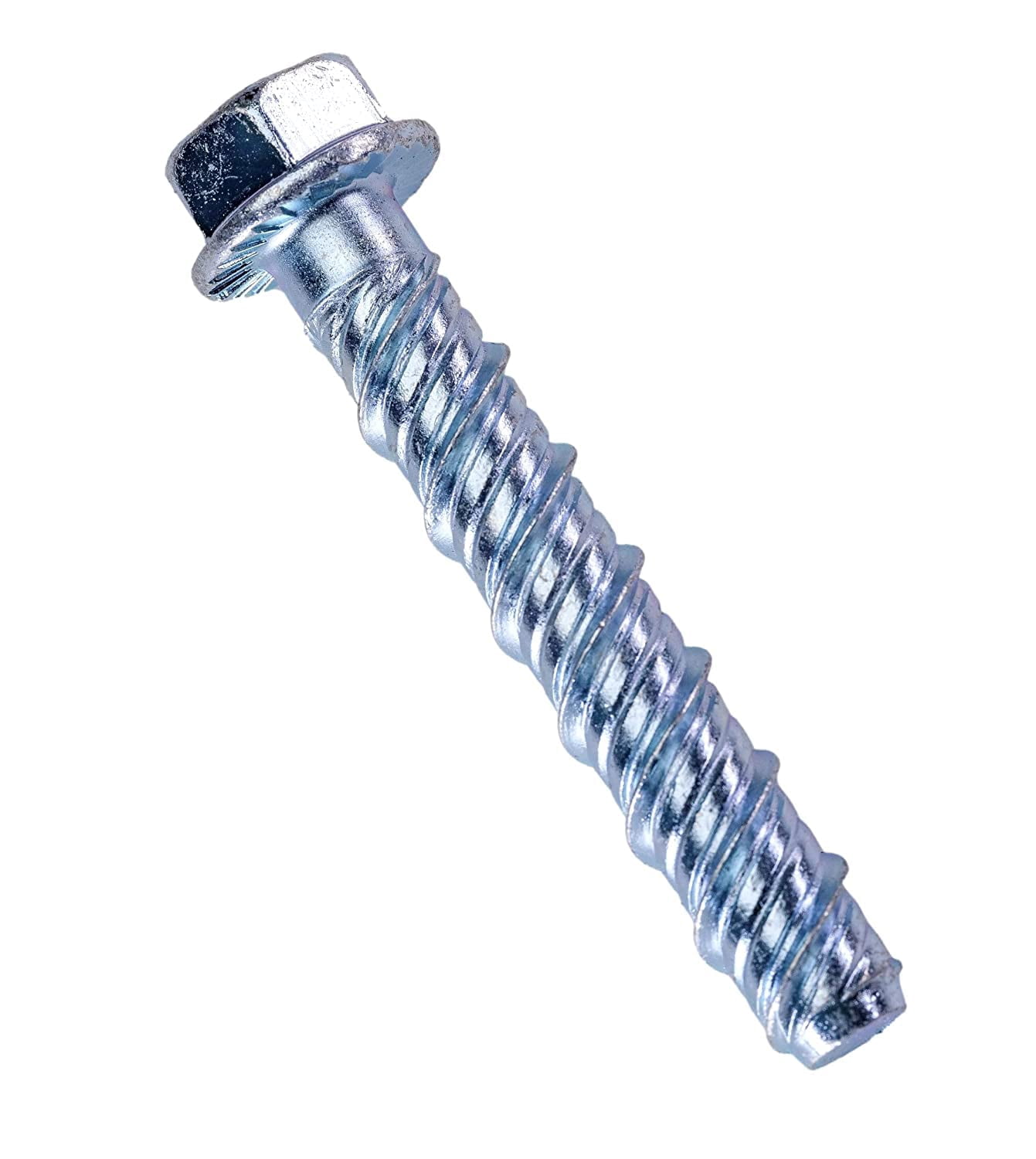

CONFAST® LDC38212 3/8" x 2-1/2" Zinc Plated Large Diameter Concrete Screw for Anchoring to Masonry, Brick or Block (25 per Box)

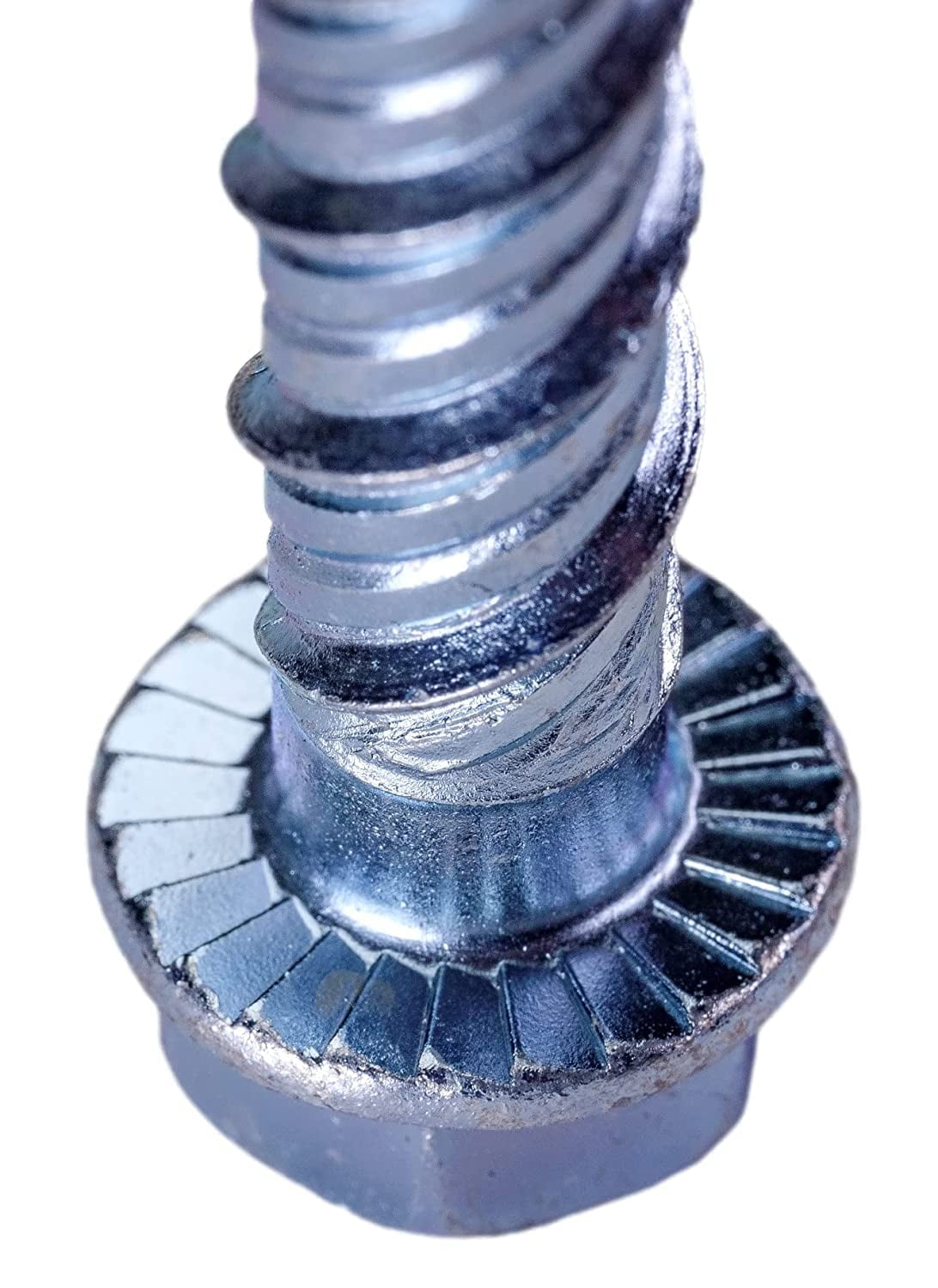

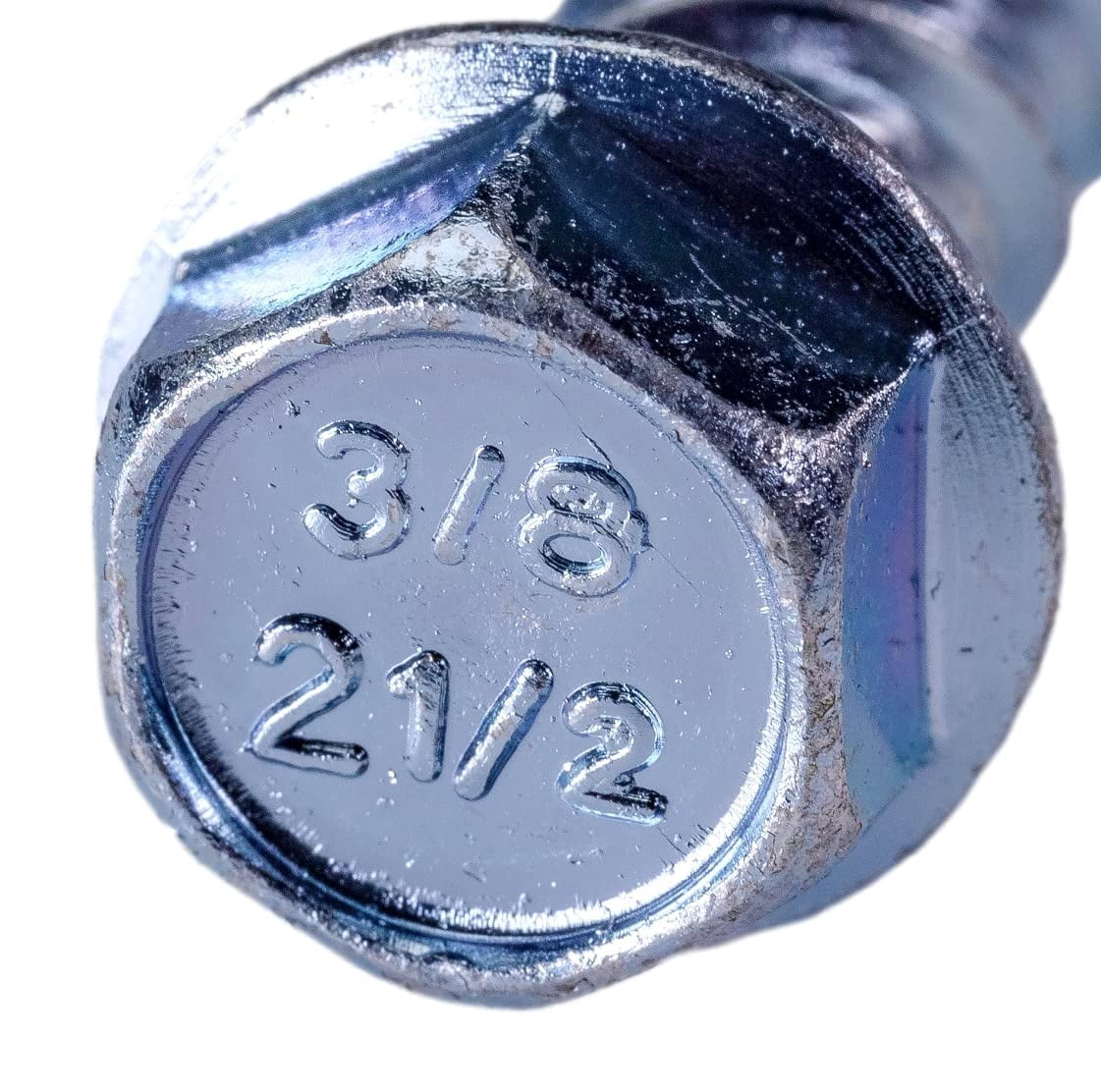

<p>Applications</p><p>The anchor is made from Carbon Steel, and is Zinc Plated. This anchor is designed for use in Concrete.</p><p></p><p>Environment</p><p>The anchor is designed for use in a Dry environment.</p><p></p><p>Head Style </p><p>The anchor is a Hex Washer Serrated head and is designed to allow the head to sit on top of the surface of the item being attached.</p><p></p><p>Hole Diameter/Bit Diameter</p><p>The anchor requires a 3/8" hole to be drilled in the base material (Concrete). The hole should be drilled with carbide tipped bit using a hammer drill.</p><p></p><p>Driver Required</p><p>A 9/16" nut driver is required for driving the anchor into the base material.</p><p></p><p>Diameter of Anchor </p><p>The diameter of the anchor is 3/8".</p><p></p><p>Length Anchor </p><p>The length of the anchor is 2-1/2"</p><p></p><p>Minimum Embedment</p><p>The minimum anchor embedment into the concrete is 1-1/2". Therefore, the anchor must be installed so that a minimum of 1-1/2" of the anchor is embedded into the concrete.</p><p></p><p>Maximum Fixture Thickness</p><p>The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1-1/2". This will ensure that the minimum embedment of 1-1/2" will be met.</p><p></p><p>Fixture Hole Diameter</p><p>The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 3/8" diameter anchor requires the hole in the fixture to be 7/16".</p><p></p><p>Spacing between Anchors</p><p>Each anchor must be spaced a minimum distance of 6" from each other when measured center to center.</p><p></p><p>Edge Distance</p><p>It is very important not to install the anchor any closer than 3" from an unsupported edge of the concrete.</p>

• BIT INCLUDED IN EACH BOX-Proper bit equals improved holding values and reduced cost
• SLOTTED HEX HEAD-Can be driven with a nut driver
• SELF-TAPPING-Taps threads directly into masonry and requires no other anchor
• DIAMOND POINT-Easier to drive the screw to save time
