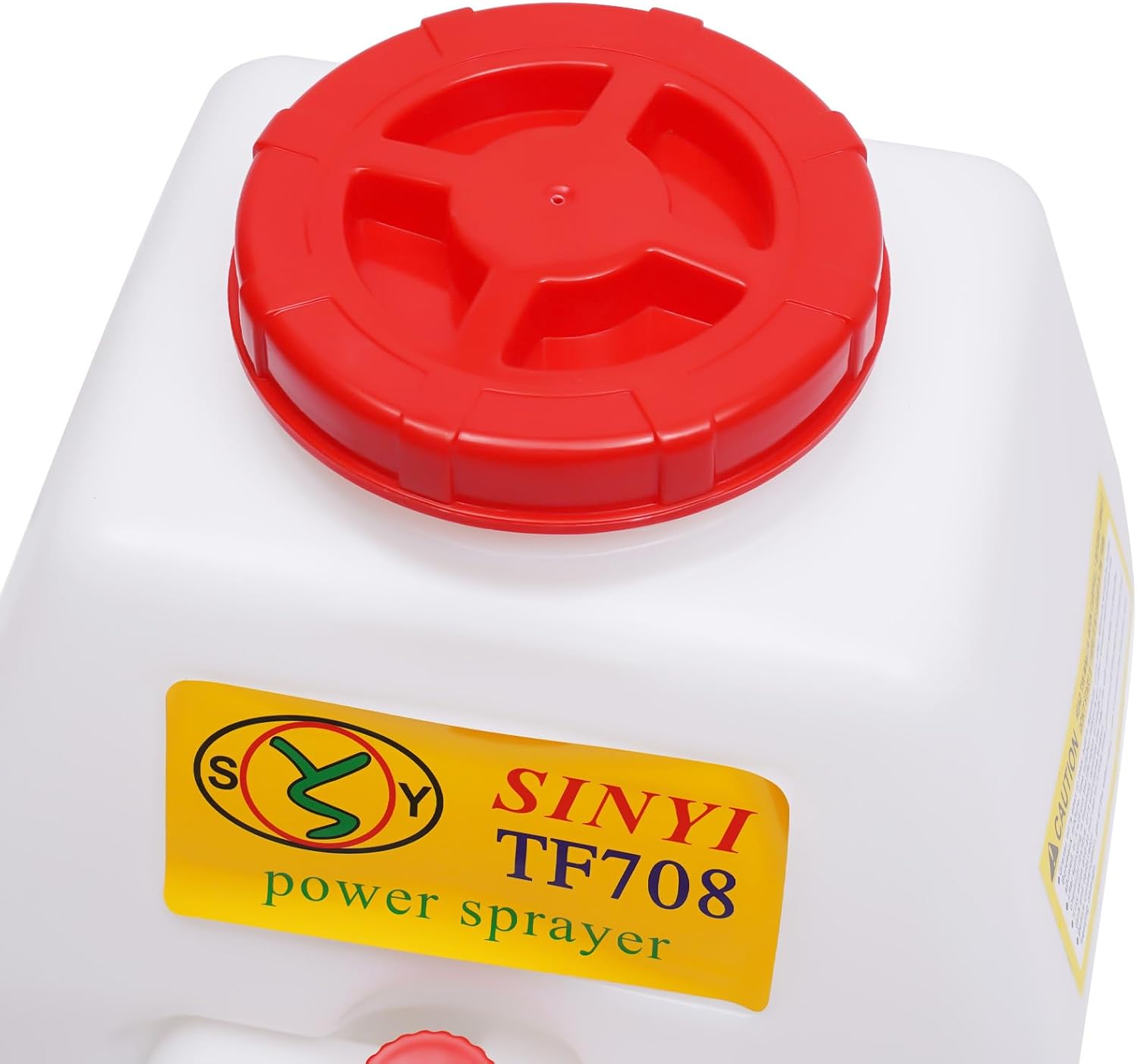

25.4CC 5.28Gal High-Pressure Backpack Sprayer 6.56-24.25FT Range Adjustable Nozzle for Farm

SpecificationColor: Red, WhiteMaterial: PP Plastic, Aluminum AlloyFan Rotation Speed :8500 (r/min)Tank Capacity :20L/4.40gal(UK), 5.28gal(US)Displacement: 25.4ccStandard Power :0.7kw/6500-7500r/minMixed Fuel Ratio : 20~25:1Working Pressure: 10-30kgf/cm2Spray Pump Type: High-pressure PumpFuel Tank Capacity: 1.1L/0.24gal(UK), 0.29gal(US)Engine Model: TU26Water Absorption: 10L/minSpray Amount: 8L/minSpraying Range: 2-8m/6.56-24.25ft Parallel Spraying, 4-6m/13.12-19.69ft HeightNozzle Length: 53cm/20.86inchExtension Rod Length: 60cm /23.62inchThree Nozzles Rod Length: 60cm /23.62inchMachine Size: 28x20x61cm/11.02x7.87x24.01inchPackage Size: 42x38x66cm/16.54x14.96x25.98inchGross Weight: 10kg/22lbsHow to Start1.To fill the fuel tank with Mixed oil. The mixing ratio is 1:20-25 for FB/FC grade oil and 1:40-50 for FD grade oil.2.Press the oil bubble under the carburetor until the fuel is filled with fuel.3.Check that the red flameout switch is in a stationary state and close the damper.4.Pull the start rope and turn the damper down after starting to open the damper.5.If there is a start-up reaction that does not start, please increase the throttle slightly and pull the starter rope again. Or open the damper at the next pull.6.After the startup is complete, open the damper.7.Cycle acceleration heat engine. (Do not use a large throttle when there is no water in the tank.)8.In the first 10 hours, the oil mixing ratio is slightly thicker, and then according to the normal ratio.9.Adjust the high-pressure pump return water switch, the water returning clockwise becomes smaller, and the counter-clockwise return water is large, generally placed in the middle position. Never turn off the return water completely. The job is to adjust if the spray pressure is reduced or the engine load is increased.Package Included1x Sprayer1x Filter1x Water Tube1x Bottle3x Rods2x StrapsNotesPlease allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• Spray Range Adjustable: The spray range of the special spray gun can reach 6.56-24.25ft parallel spraying and 13.12-19.69ft of vertical spraying by adjusting the gun handle. The nozzle can be extended by a long rod so that it can reach more places, cover a large area and finish the spraying work quickly.
• Powerful and Efficient: This backpack sprayer is very powerful, operating at up to 0.7kw/6500-7500r/min. The high efficiency of the operation allows it to do the spraying work very quickly, which can save time and energy.
• Adjustable Pressure: This backpack sprayer has a pressure valve on the left side to adjust the pressure of the sprayer. You can adjust the appropriate pressure according to your own needs.
• Portable: The plastic structure of the fan and fan case makes the backpack sprayer light and portable. The integrated tank and fuel tank enable the machine to have a small and compact configuration. So it is small and lightweight that can be carried easily.
• Large Fuel Tank and Liquid Tank Capacity: Both fuel tanks have a large capacity, allows you to fill up the fuel and liquid tank conveniently without having to refill them frequently.
