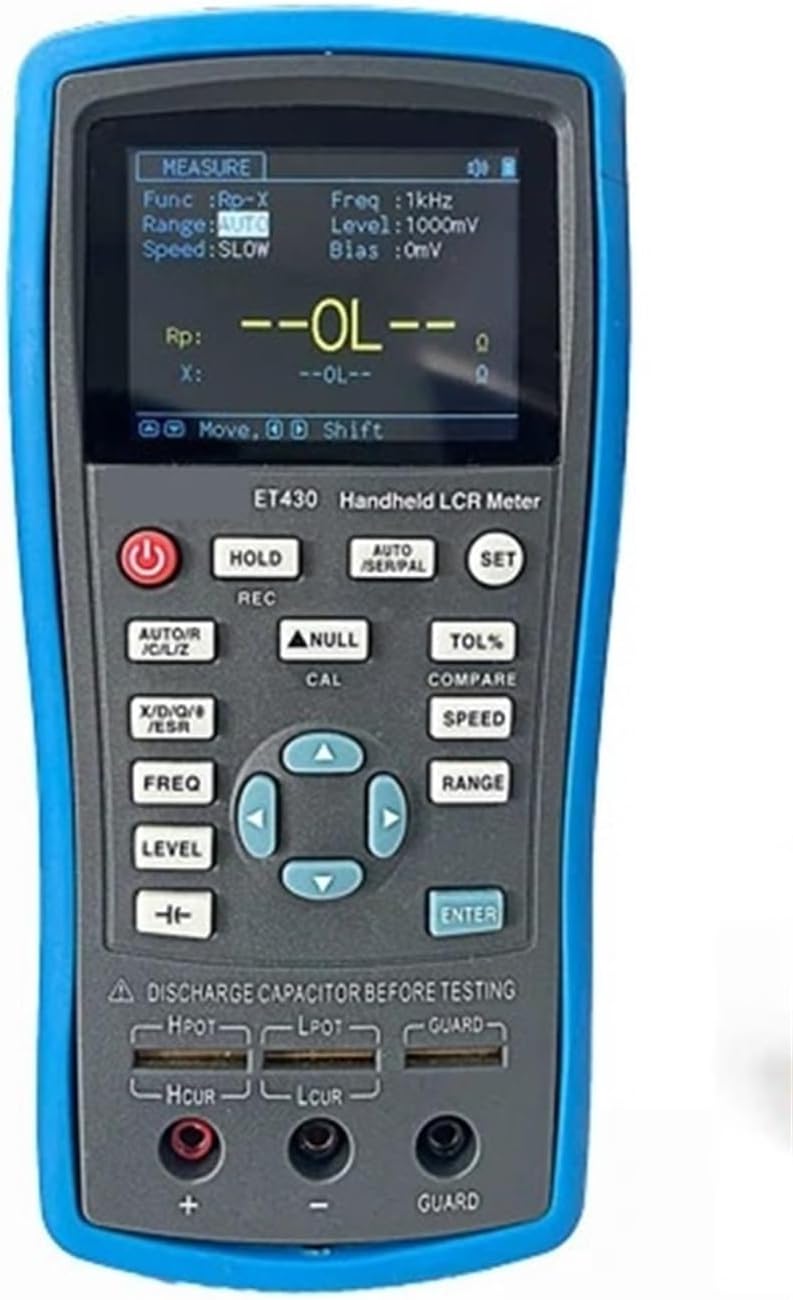

100kHz Multifunction Handheld LCR Digital Bridge Meter High Precision Capacitance Inductance Resistance Meter for Electrical Testing(ET431)

Product description:ET43 series handheld bridge features 2.8" TFT display screen, easy key operation and USB communication.Its high capacity lithium battery ensureslong run.It can measurecomprehensive parameters, and supportsfor screening and deviation measurement, with continuously adjustable output frequency.The basic accuracyreaches 0.2%/0.3%.Product Features:Measurable frequency up to 100k Hz, continuously adjustable at a step of 1 Hz.Measurement of DC resistance and electrolytic capacitor supportedInternalbias voltage output (0 mV-500 mV)Automatic identification of measured componentSupport for screening and deviation measurement2.8" TFT display screen, a 4 1/2 digit displayUSB communication interfacePower supply by high capacity lithium batterySupport for SCPI protocolSystem configuration available for setting of language, buzzer and display brightnessBasic measuring accuracy 0.2%, adjustable measuring speedManual and automatic rangeOpen circuit and short circuit calibrationMultiple testing ports

• 1. High Precision Measurement: Our 100kHz Multifunction Handheld LCR Digital Bridge Meter offers exceptional accuracy, with a basic measuring accuracy of 0.2% and adjustable measuring speed. Whether you need to measure capacitance, inductance, or resistance, this device ensures precise and reliable results.
• 2. Versatile Frequency Range: With a measurable frequency range up to 100kHz, our LCR Digital Bridge Meter allows you to analyze components across a wide spectrum. The frequency is continuously adjustable at a step of 1Hz, providing flexibility for various testing requirements.
• 3. Comprehensive Parameter Analysis: Our handheld bridge meter supports the measurement of DC resistance and electrolytic capacitors, making it a versatile tool for electronics professionals. It also features an internal bias voltage output ranging from 0mV to 500mV, enabling accurate measurements for different components.
• 4. User-Friendly Interface: Equipped with a 2.8" TFT display screen and easy key operation, our LCR Digital Bridge Meter offers a user-friendly experience. You can easily navigate through the menu options and view measurement results with clarity. Additionally, the USB communication interface allows for convenient data transfer.
• 5. Portable and Reliable: Designed for convenience and durability, our LCR Digital Bridge Meter is powered by a high-capacity lithium battery, ensuring long run time for on-the-go testing. Its compact size and multiple testing ports make it suitable for various applications, while the open circuit and short circuit calibration ensure accurate and consistent readings.
